SERVERS / DELL POWEREDGE / CONFIGURE TO ORDER

PowerEdge R740xd

2U rack server · Up to 2 Intel Xeon 2nd-generation CPUs · Up to 3TB DDR4 ECC RAM

Configure · Review · Share
Live catalog pricing · USD

Dell R740xd chassis type

Chassis type

Component details

Model: Dell PowerEdge R740xd 12LFF + 4SFF
Format: 2U rack server
Front drive bays: 12LFF
Rear drive bays: 4SFF

01 / CPU

CPU

Processor model

Component details

Model: Intel Xeon Gold 6242R 3.10GHz 20 Core
Cores per processor: 20
Base clock: 3.10 GHz
Threads per processor: 40
Maximum turbo frequency: 4.10 GHz
Cache: 35.75 MB
TDP: 205 W
Memory support: DDR4-2933 ECC · 6 channels
Socket: FCLGA3647
PCI Express: 3.0 · 48 lanes

Intel specifications

Matching processors

02 / RAM

Memory

Configured memory · RDIMM64 GB

Bank A

Bank A memory module

Quantity

Component details

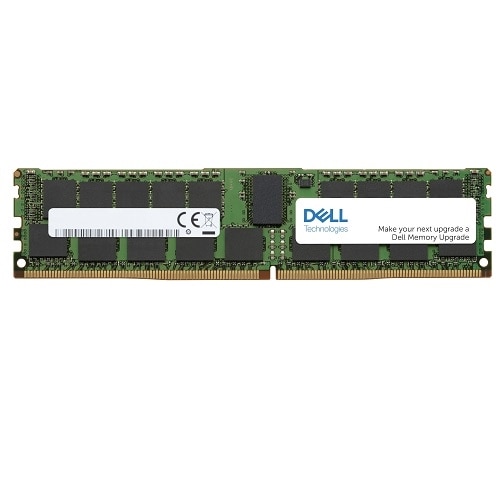

Model: 64GB DDR4 PC4-21300 2666MHz ECC
Technology: DDR4 ECC RDIMM
Capacity per module: 64 GB
Rated data rate: 2666 MT/s

Rated / population ceiling 2666 MT/sEffective speed Needs CPU / DIMM verification

03 / STORAGE

Disk

Chassis-defined layout: 12 front LFF bays + 4 rear SFF bays. No mid cage.

Front Side drives

12 LFF bays · 3.5-inch caddies

Drive model

Quantity

Component details

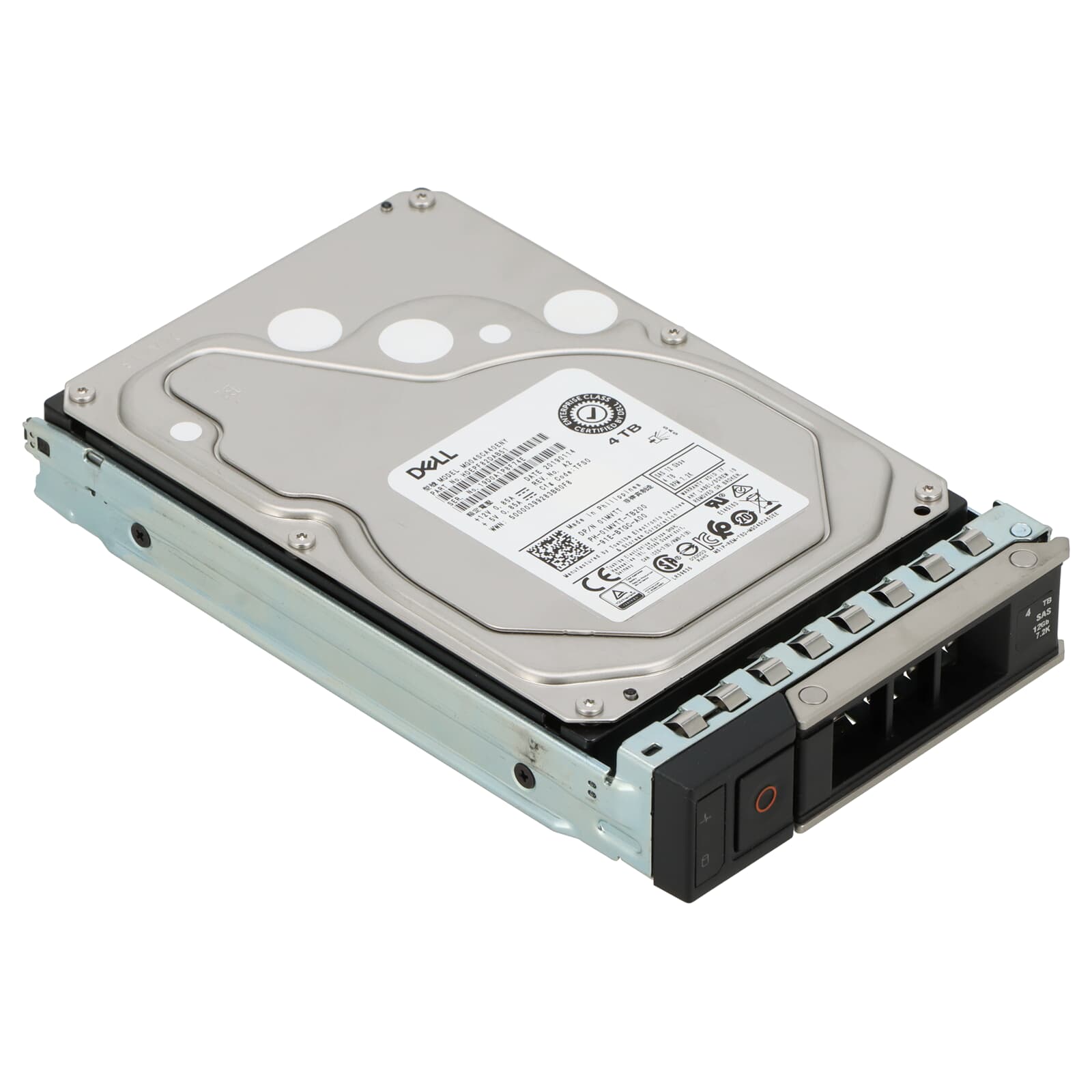

Model: HDD 4TB SAS 7.2K 3.5 12Gb/s with Tray caddy
Form factor: 3.5-inch LFF
Carrier: Dell hot-swap caddy
Drive technology: HDD
Spindle speed: 7.2K RPM
Capacity per drive: 4TB
Interface: SAS

Rear Side drives

4 SFF bays · 2.5-inch caddies

Drive model

Quantity

Component details

Model: SSD 240GB SATA 2.5" with tray caddy
Form factor: 2.5-inch SFF
Carrier: Dell hot-swap caddy
Drive technology: SSD
Capacity per drive: 240GB
Interface: SATA

Include required SFF-to-LFF adapters (0 × $7.00)

BOSS boot storage

04 / RAID

RAID

Internal controller

Component details

Model: Dell PERC H730p 2GB PCIe RAID Controller
Cache: 2 GB

OS disk array

Data disk array

OS and data arrays are evaluated separately. Adding front data disks does not change the rear OS mirror.

05 / NETWORK

Network

Network daughter card

Component details

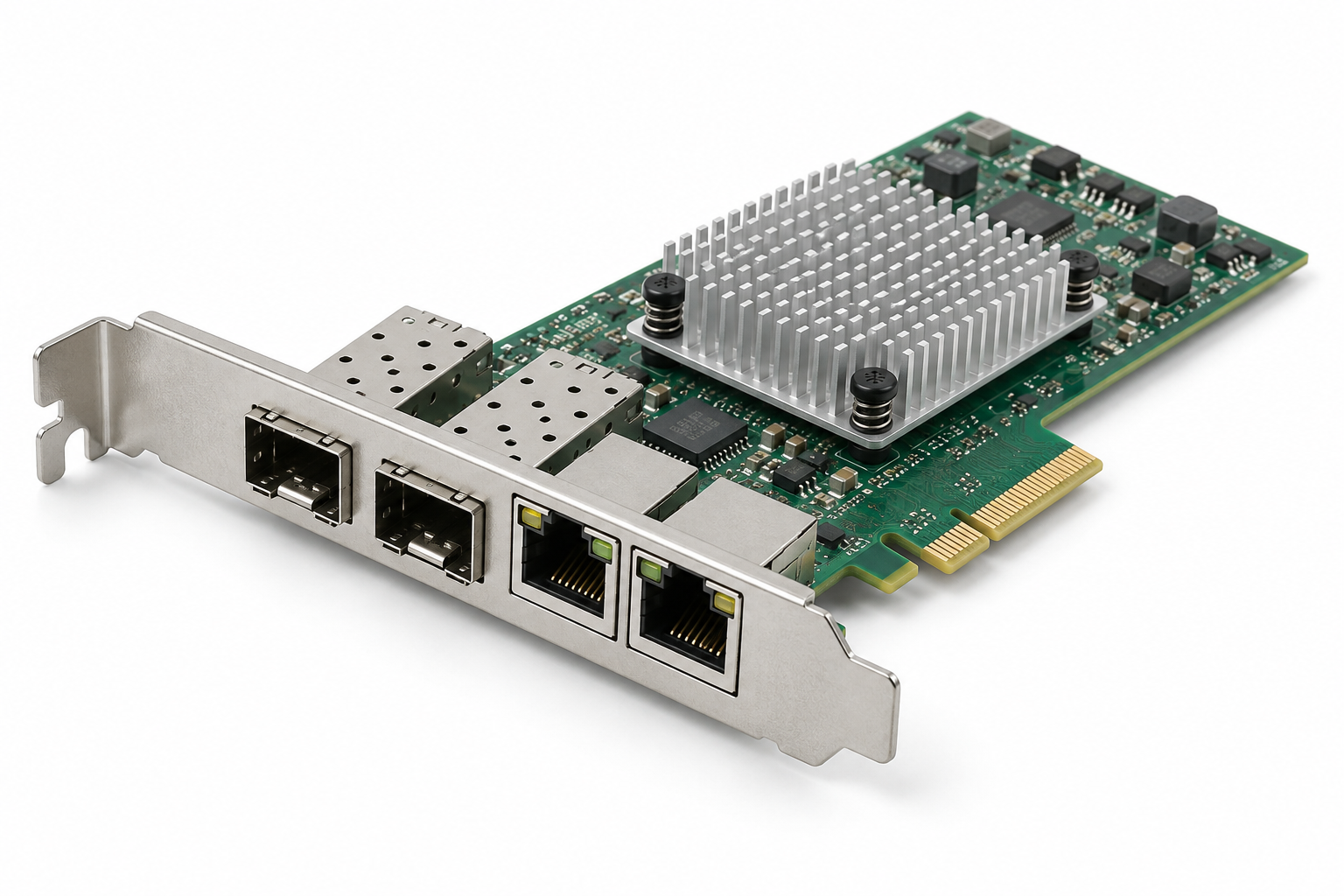

Model: Dell Broadcom 57800S 2х10Gb SFP+/ 2x1Gb BASE-T (MT09V/165T0)
Connection: Dedicated network daughter-card socket
Ports: 2х10Gb SFP+ · 2x1Gb BASE-T

0 slot positions requested / 4 physical slots. Exact card fit and CPU attachment require verification.

06 / GPU

GPU

Include complete Dell GPU enablement kit (price to confirm)

07 / POWER

Power & cooling

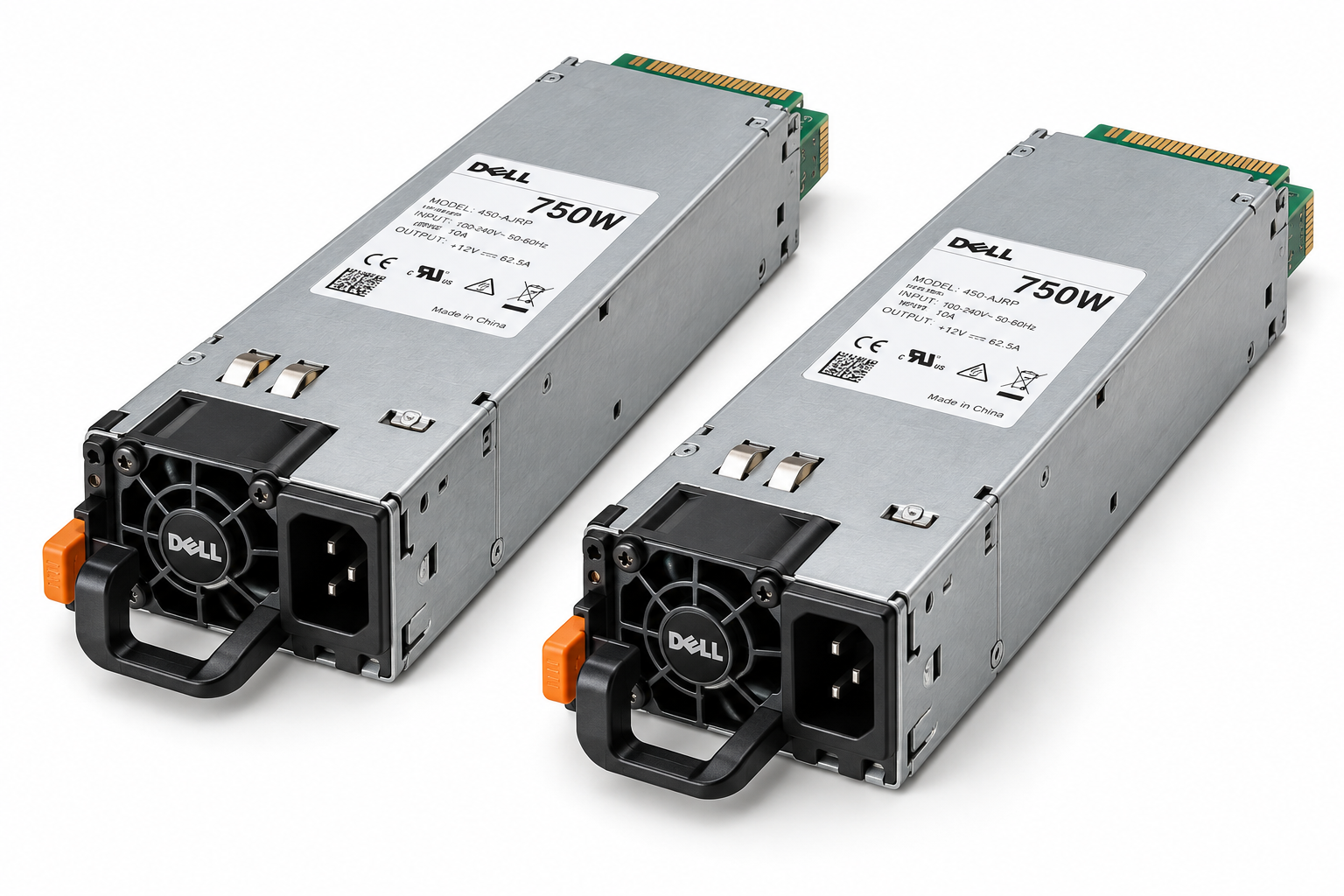

Matching power-supply pair (2 physical PSUs)

Component details

Model: 2x DELL 750W for Gen Rx13/14
Rated output per PSU: 750 W

Input voltage

Cooling assembly

Redundant PSU mode

08 / SERVICES

Accessories & coverage

Remote Administration

Component details

Model: iDRAC9 Enterprise Remote Administration

TPM

Installation

Quantity

Component details

Model: DELL PowerEdge Rail Kit 2U

Installation

Quantity

Component details

Model: DELL 2U Security Bezel Gen14

Power cables

2 × C14 to NEMA 5-15

$15.00 each · $30.00 total

Component details

Model: Power cable C14 to NEMA 5-15
Connectors: IEC C14 to NEMA 5-15

Blank caddies · included with chassis

12 × LFF blanksfront · 0 drives / 12 bays

2 × SFF blanksrear · 2 drives / 4 bays

One blank is removed for every drive added to that cage, and restored when a drive is removed. Drive caddies are included with the selected drives.

Warranty

Component details

Model: Standard 1-Year Warranty, including HDD and SSD

Delivery & payment

Makati pickup: $2,640.96 including $282.96 VAT (12%). Full payment.

Vendor service and warranty options are retained for prototype testing and need 1WAN confirmation before sale. Pickup includes 12% VAT. Colocation is shown before VAT. Shipping is excluded.

YOUR CONFIGURATION

R740xd 12LFF + 4SFF

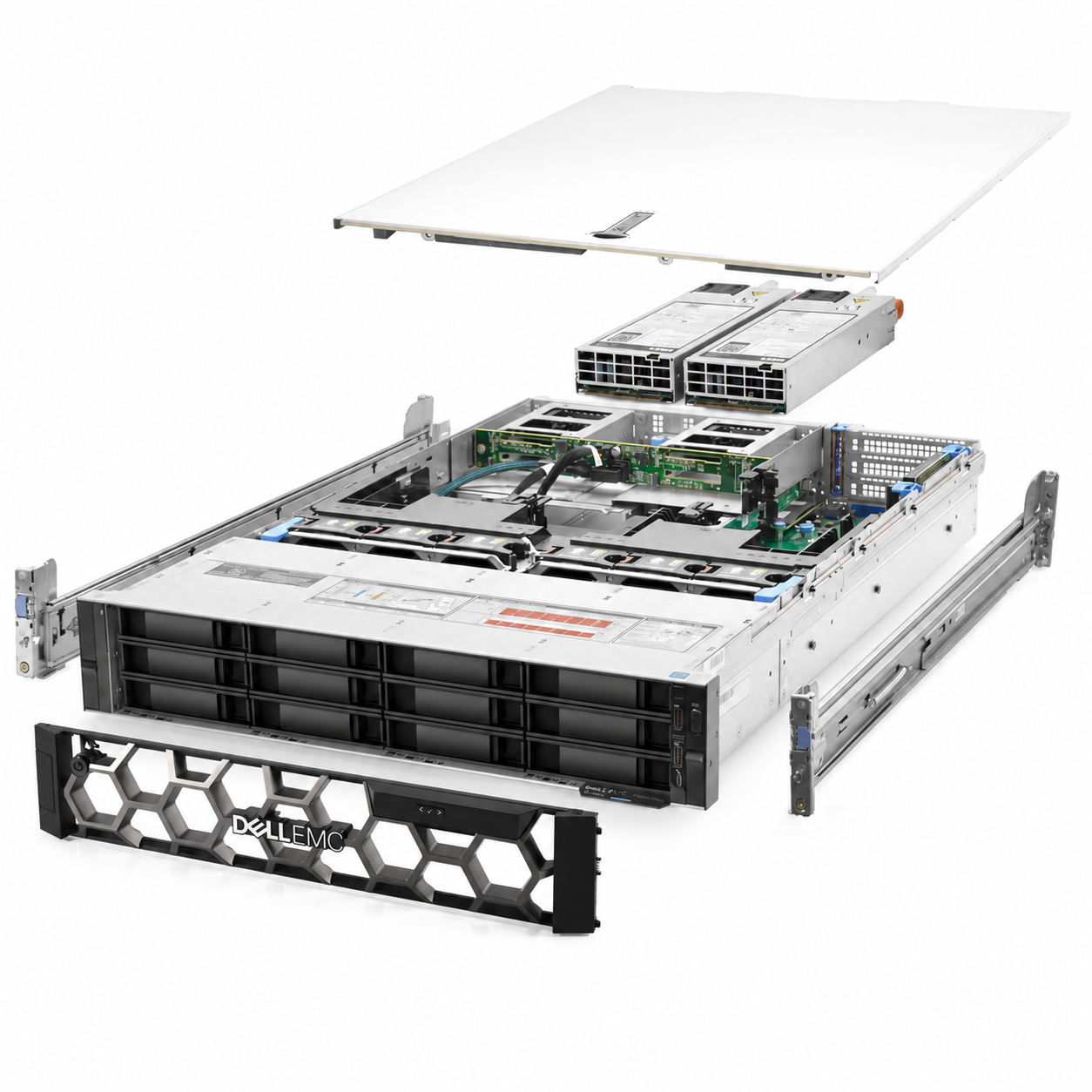

Open-top chassis view · rails and bezel included; accessories shown detached.

Selected components

Chassis: Dell PowerEdge R740xd 12LFF + 4SFFOn-order · 40 days
CPU: Intel Xeon Gold 6242R 3.10GHz 20 CoreOn-order · 40 days
Memory: 64GB DDR4 PC4-21300 2666MHz ECCCPU A · RDIMMOn-order · 40 days
RAID: Dell PERC H730p 2GB PCIe RAID ControllerOn-order · 40 days
OS disk: SSD 240GB SATA 2.5" with tray caddyrear bays · RAID 1On-order · 40 days
Network: Dell Broadcom 57800S 2х10Gb SFP+/ 2x1Gb BASE-T (MT09V/165T0)On-order · 40 days
Remote: iDRAC9 Enterprise Remote AdministrationOn-order · 40 days
Power: DELL 750W for Gen Rx13/14200–240V · redundant pairOn-order · 40 days
Mount: DELL PowerEdge Rail Kit 2UOn-order · 40 days
Bezel: DELL 2U Security Bezel Gen14On-order · 40 days
Warranty: Standard 1-Year Warranty, including HDD and SSDOn-order · 40 days
Power cables: Power cable C14 to NEMA 5-15On-order · 40 days

Known component subtotal

$2,358.00

One-time hardware & selected coverage

Makati pickup

Makati pickup: $2,640.96 including $282.96 VAT (12%). Full payment.

Readiness: 40 days after order confirmation

Stock 7 days · On-order 40 days · Backlogged 60–90 days (90-day planning estimate). The slowest selected item determines readiness.

Technical review required

No blocking rule violations. Unverified parts, stock and pricing remain listed for review.

4 review items

Operating speed and rank/population support need the exact CPU/DIMM specifications. The displayed speed is an upper bound. Source

Verify the included rear cage/backplane and cabling against the selected chassis. Cooling-kit part numbers and any upgrade pricing need confirmation.

The selected high-performance cooling assembly needs confirmed part numbers and pricing. Its price is excluded from the known subtotal.

Final power budget and CPU heatsink choice require exact component power data and Dell thermal-table review.

7-day validity · PDF & email draft
Required unpriced kits are not included in subtotal.

Itemized pricing

1 × Dell PowerEdge R740xd 12LFF + 4SFF: $1,229.00

1 × Intel Xeon Gold 6242R 3.10GHz 20 Core: $210.00

1 × 64GB DDR4 PC4-21300 2666MHz ECC: $450.00

2 × SSD 240GB SATA 2.5" with tray caddy: $160.00

1 × Dell PERC H730p 2GB PCIe RAID Controller: $89.00

1 × Dell Broadcom 57800S 2х10Gb SFP+/ 2x1Gb BASE-T (MT09V/165T0): $20.00

1 × iDRAC9 Enterprise Remote Administration: $0.00

1 × 2x DELL 750W for Gen Rx13/14: $40.00

1 × DELL PowerEdge Rail Kit 2U: $95.00

1 × DELL 2U Security Bezel Gen14: $35.00

1 × Standard 1-Year Warranty, including HDD and SSD: $0.00

2 × Power cable C14 to NEMA 5-15: $30.00

12 × LFF blank caddy / bay filler: $0.00

2 × SFF blank caddy / bay filler: $0.00
